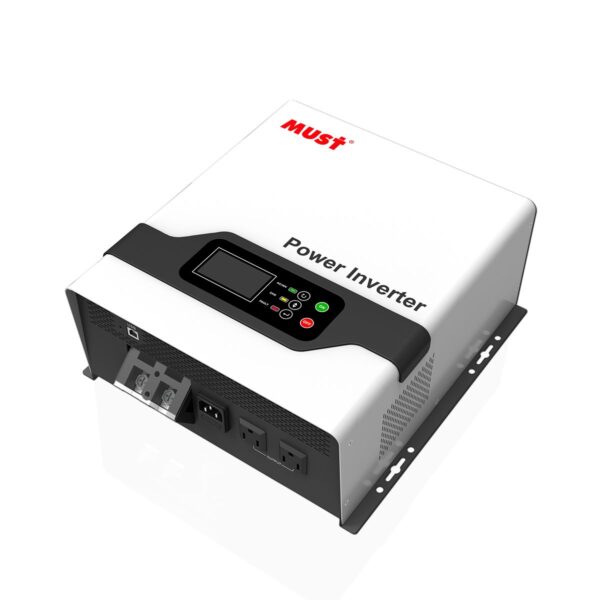

■ Sine wave inverter
■ Adjustable charging current from utility
■ Adjustable battery charging current
■ 3 steps charging algorithm
■ Friendly user interface
■ Multi-function display
■ Overload and short-circuit protection
■ Battery reverse polarity protection
■ Deep discharge protection
■ Automatic voltage regulationCommunication with PC
| MODEL | EH29-0312 LV | EH29-0412 LV | EH29-0512 LV | EH29-0612 LV | EH29-0812 LV | EH29-1012 LV |
| Default Battery System Voltage | 12VDC | |||||
| INVERTER OUTPUT | ||||||
| Rated Power | 300W | 400W | 500W | 600W | 800W | 1000W |
| Surge Rating | 900VA | 1200VA | 1500VA | 1800VA | 2400VA | 3000VA |
| Waveform | Pure sine wave | |||||
| Voltage Regulation | Battery mode: 110 or 120VAC Line mode: 95~125VAC | |||||
| Output Frequency | 50Hz / 60Hz | |||||
| Invertert Frequency (Peak) | >75% | |||||
| Bypass Efficiency | >95% | |||||
| Output Transfer Time | 8ms(typical) 12ms(max) | |||||
| AC INPUT | ||||||
| Voltage | 110/120VAC | |||||
| Selectable Voltage Range | 70~140VAC ±5% | |||||
| Low Battery Alarm | 70VAC ±5% | |||||
| Low Voltage Recover | 75VAC ±5% | |||||
| High Battery Alarm | 140VAC ±5% | |||||
| High Voltage Recover | 135VAC ±5% | |||||
| Low Frequency Alarm | 45 ±5Hz | |||||
| Low Frequency Recover | 46 ±5Hz | |||||
| High Frequency Alarm | 65 ±5Hz | |||||
| High Frequncy Recover | 64 ±5Hz | |||||
| Nominal Input Range | 50Hz / 60Hz ±5Hz | |||||
| AC Auto Restart | YES | |||||
| BATTERY | ||||||
| Minimum Start Voltage | Low Battery Voltage Cutoff+0.5V | |||||
| Low Battery Alarm | Low Battery Voltage Cutoff+0.5V | |||||
| Min battery voltage for power on | Shutdown voltage +0.5V | |||||
| Low Battery Cutoff | 10-12.0VDC | |||||
| High Battery Alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC) | |||||
| AC CHARGE | ||||||
| Floating Voltage | 13.5-14.5VDC | |||||
| Boost Voltage | 13.8~14.5VDC | |||||
| Maximum Charge Current | 300W | 400W | 500W | 600W | 800W | 1000W |
| 10A | 10A | 15A | 20A | 25A | 30A | |
| BYPASS & PROTECTION | ||||||
| Input Waveform | Pure sine wave | |||||
| Input Frequency | 50Hz or 60Hz | |||||
| Overload Protection | >110%~125% Load foult affter 60s; >125%~150% Load foult affter 3s; >150% Load fault after 500ms | |||||
| Over Temperature Protection | ≥90℃ | |||||
| Bypass Output Protection | 15A 250VAC | |||||
| Output Circuit Protection | YES | |||||
| Battery Reverse Protection | Optional | |||||
| Battery Low Voltage Protection | YES | |||||
| Battery High Voltage Protection | YES | |||||
| Bypass Breaker Rating | 15A | |||||
| Maximum Bypass Current | 15A | |||||
| MECHANICAL SPECIFICATION | ||||||
| Machine Dimension (W*H*D) | 319*300.5*132.2mm | |||||
| Package Dimension (W*H*D) | 391*325*187mm | |||||
| Operating Temperature | 0℃ ~40℃ 0~90% relative humidity (non-condensing) | |||||
| Storage Temperature | -15℃ to 55℃ | |||||
| Altitude | ≤1000M | |||||
| Audible Noise | ≤60dB | |||||
| Display | LED+LCD | |||||
| Cooling Mode | Fan cooling | |||||
| Fan Starting | >45℃ starting, <30℃ Closing | |||||
| Communication | USB | |||||
| CERTIFICATION & STANDARDS | ||||||
| CE-LVD (EN IEC62109-1:2010,EN IEC62109-2:2011)
CE-EMC+LVD (EN6100-6-4:2007, EN6100-6-2:2005+EN IEC62109-1:2010, EN IEC62109-2:2011) IEC60950-1:2005A+1:2009+A2:2013 EN IEC62040-1:2019 |
||||||
| MODEL | EH29-0624 LV | EH29-0824 LV | EH29-1024 LV |
| Default Battery System Voltage | 24VDC | ||
| INVERTER OUTPUT | |||
| Rated Power | 600W | 800W | 1000W |
| Surge Rating | 1800VA | 2400VA | 3000VA |
| Waveform | Pure sine wave | ||
| Voltage Regulation | Battery mode: 110 or 120VAC Line mode: 95~125VAC | ||
| Output Frequency | 50Hz / 60Hz | ||
| Invertert Frequency (Peak) | >81% | ||
| Bypass Efficiency | >95% | ||
| Output Transfer Time | 8ms(typical) 12ms(max) | ||
| AC INPUT | |||
| Voltage | 110/120VAC | ||
| Selectable Voltage Range | 70~140VAC ±5% | ||
| Low Battery Alarm | 70VAC ±5% | ||
| Low Voltage Recover | 75VAC ±5% | ||
| High Battery Alarm | 140VAC ±5% | ||
| High Voltage Recover | 135VAC ±5% | ||
| Low Frequency Alarm | 45 ±5Hz | ||
| Low Frequency Recover | 46 ±5Hz | ||
| High Frequency Alarm | 65 ±5Hz | ||
| High Frequncy Recover | 64 ±5Hz | ||
| Nominal Input Range | 50Hz / 60Hz ±5Hz | ||
| AC Auto Restart | YES | ||
| BATTERY | |||
| Minimum Start Voltage | Low Battery Voltage Cutoff+0.5V | ||
| Low Battery Alarm | Low Battery Voltage Cutoff+1.0V | ||
| Min battery voltage for power on | Shutdown voltage +1V | ||
| Low Battery Cutoff | 20.0-24.0VDC | ||
| High Battery Alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC) | ||
| AC CHARGE | |||
| Floating Voltage | 27-29VDC | ||
| Boost Voltage | 27.6~29VDC | ||
| Maximum Charge Current | 600W | 800W | 1000W |
| 10A | 15A | 15A | |
| BYPASS & PROTECTION | |||
| Input Waveform | Pure sine wave | ||
| Input Frequency | 50Hz or 60Hz | ||
| Overload Protection | >110%~125% Load foult affter 60s; >125%~150% Load foult affter 3s; >150% Load fault after 500ms | ||
| Over Temperature Protection | ≥90℃ | ||
| Bypass Output Protection | 15A 250VAC | ||
| Output Circuit Protection | YES | ||
| Battery Reverse Protection | Optional | ||
| Battery Low Voltage Protection | YES | ||
| Battery High Voltage Protection | YES | ||
| Bypass Breaker Rating | 15A | ||
| Maximum Bypass Current | 15A | ||
| MECHANICAL SPECIFICATION | |||
| Machine Dimension (W*H*D) | 319*300.5*132.2mm | ||
| Package Dimension (W*H*D) | 391*325*187mm | ||
| Operating Temperature | 0℃ ~40℃ 0~90% relative humidity (non-condensing) | ||
| Storage Temperature | -15℃ to 55℃ | ||
| Altitude | ≤1000M | ||
| Audible Noise | ≤60dB | ||
| Display | LED+LCD | ||
| Cooling Mode | Fan cooling | ||
| Fan Starting | >45℃ starting, <30℃ Closing | ||
| Communication | USB | ||
| CERTIFICATION & STANDARDS | |||
| CE-LVD (EN IEC62109-1:2010,EN IEC62109-2:2011)
CE-EMC+LVD (EN6100-6-4:2007, EN6100-6-2:2005+EN IEC62109-1:2010, EN IEC62109-2:2011) IEC60950-1:2005A+1:2009+A2:2013 EN IEC62040-1:2019 |
|||
