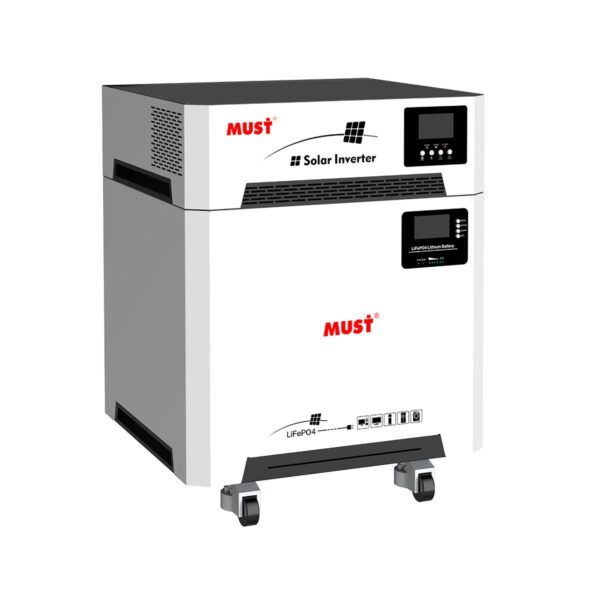

■ Stacked movable energy storage systems
■ Rechargeable lithium batteries use safe lithium cell LiFePO4
■ The intelligent BMS system adopts the latest battery communication system
■ Reduce electricity bills and increase your energy needs for electrical self-sufficiency.
| MODEL | HBP18-3048 LV | |
| INVERTER | ||
| Rated power | 3000W | |
| Output voltage waveform | Pure sine wave | |
| Output voltage regulation | (100Vac-120Vac)±5% | |
| Output frequency | 50Hz or 60Hz (±0.2Hz) | |
| Peak efficiency | 93% | |
| Nominal DC input voltage | 48Vdc | |
| Standby Consumption | <25W | |
| PV INPUT | ||
| Max solar power input | 3000W | |
| PV max charging current | 80A | |
| Combined charging current | 140A | |
| Max efficiency | 98.0% max | |
| PV array open circuit voltage | 250Vdc | |
| PV Array MPPT Voltage Range | 60~200Vdc | |
| AC INPUT | ||
| AC input voltage | 120Vac ±5% | |
| Acceptable input voltage range | 90~145VAC(UPS), 60~145VAC(APL), 107~132VAC(VDE4105) | |
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |
| AC CHARGE | ||
| Charging current @ Nominal input voltage | 60A | |
| Charging Algorithm | 4-step (Li) | |
| OUTPUT | ||
| AC output | Terminal | |
| LITHIUM BATTERY | ||
| Energy | 14336Wh | |
| Nominal voltage | 51.2V | |
| Battery capacity | 280Ah | |
| Standard charging and discharge current | 100A | |
| Maximum continuous charging & discharge current | 100A | |
| Operation ambient temperature | -10~50°C | |
| Storage ambient temperature | -20~55°C | |
| DIMENSION | ||
| Machine Dimension (W*H*D)(mm) (Inverter+Battery) | 540*715*498 | |
| Package Dimension (W*H*D)(mm) | Inverter | 627*252*585 |
| Battery | 630*695*600 | |
| N.W(kg) | Inverter | 17 |
| Battery | 115 | |
| G.W(kg) | Inverter | 28 |
| Battery | 135 | |
| Standard Warranty | Inverter: 2 years ; Lithium battery: 5 years | |
| CERTIFICATION & STANDARDS | ||
| CE-EMC | ||
