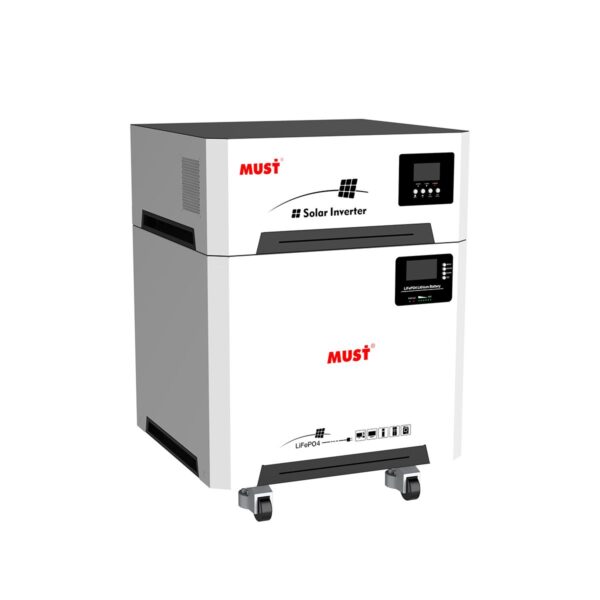

■ Stacked movable energy storage systems
■ Rechargeable lithium batteries use safe lithium cell LiFePO4
■ The intelligent BMS system adopts the latest battery communication system
■ Reduce electricity bills and increase your energy needs for electrical self-sufficiency.
| MODEL | HBP30-1524 LV | HBP30-2024 LV | HBP30-3024 LV | HBP30-5048 LV | HBP30-6048 LV | |
| INVERTER | ||||||
| Rated power | 1500W | 2000W | 3000W | 5000W | 6000W | |
| Output voltage waveform | Pure sine wave | |||||
| Output voltage regulation | 110V/115V/120V ±10% | |||||
| Output frequency | 50Hz or 60Hz (±0.2Hz) | |||||
| Peak efficiency | 88% | |||||
| Nominal DC input voltage | 24Vdc | 48Vdc | ||||
| Standby Consumption | < 2W | |||||
| PV INPUT | ||||||
| Max solar power input | 2500W | 5000W | ||||
| PV max charging current | 80A | |||||
| Combined charging current | 80A | |||||
| Max efficiency | 98% max | |||||
| PV array open circuit voltage | 245V | |||||
| PV Array MPPT Voltage Range | 30~230VDC | 60~230VDC | ||||
| AC INPUT | ||||||
| AC input voltage | 120Vac ±5% | |||||
| Acceptable input voltage range | 96~132VAC | |||||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||
| Transfer time | 10ms(max) | |||||
| AC CHARGE | ||||||
| Charging current @ Nominal input voltage | 25A | 30A | 40A | 35A | 40A | |
| Charging Algorithm | 4-step (Li) | |||||
| OUTPUT | ||||||
| AC output | Terminal & Socket (10A max) | |||||
| LITHIUM BATTERY | ||||||
| Energy | 7168wh | 14336wh | ||||
| Nominal voltage | 25.6V | 51.2V | ||||
| Battery capacity | 280Ah | |||||
| Standard charging and discharge current | 100A | |||||
| Maximum continuous charging & discharge current | 100A | |||||
| Operation ambient temperature | Charge | -10~50℃ | ||||
| Discharge | -20~55℃ | |||||
| DIMENSION | ||||||
| Machine Dimension (W*H*D)(mm) (Inverter+Battery) | 620*865*610 | 640*992*600 | ||||
| Package Dimension (W*H*D)(mm) | Inverter | 617*297*587 | ||||
| Battery | 620*568*610 | 640*695*600 | ||||
| N.W(kg) | Inverter | / | / | 25.6 | / | 35.7 |
| Battery | / | / | / | 115 | ||
| G.W(kg) | Inverter | / | / | 27.9 | / | 38 |
| Battery | / | / | / | 135 | ||
| Standard Warranty | Inverter: 2 years ; Lithium battery: 5 years | |||||
| CERTIFICATION & STANDARDS | ||||||
| CE-EMC | ||||||
