PH3000 Series (10-12KW)

Low Frequency On/Off Grid Hybrid Solar Inverter

This model PH3000 Three-phase is a flexible and intelligent energy storage inverter which utilizes solar power, utility power, and battery power source to supply continuous power. This is a multi-functional hybrid inverter which can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. The system generates electricity when it has sufficient sunshine, supplying power to your home and feeding any surplus power back to the Grid.

Model	Certification & Standards
PH30-12048T, PH30-12048S	CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2017+EN IEC62109-1:2010, EN IEC62109-2:2011)
PH30-10048T/12048T, PH30-10048S/12048S	CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011)

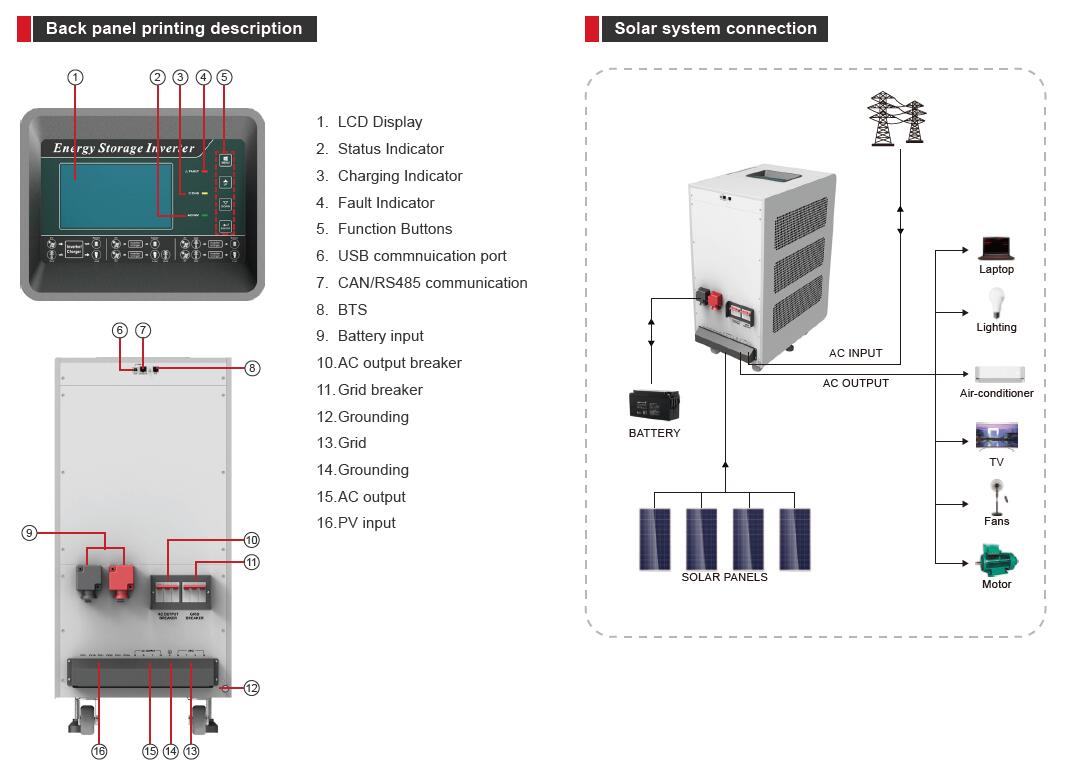

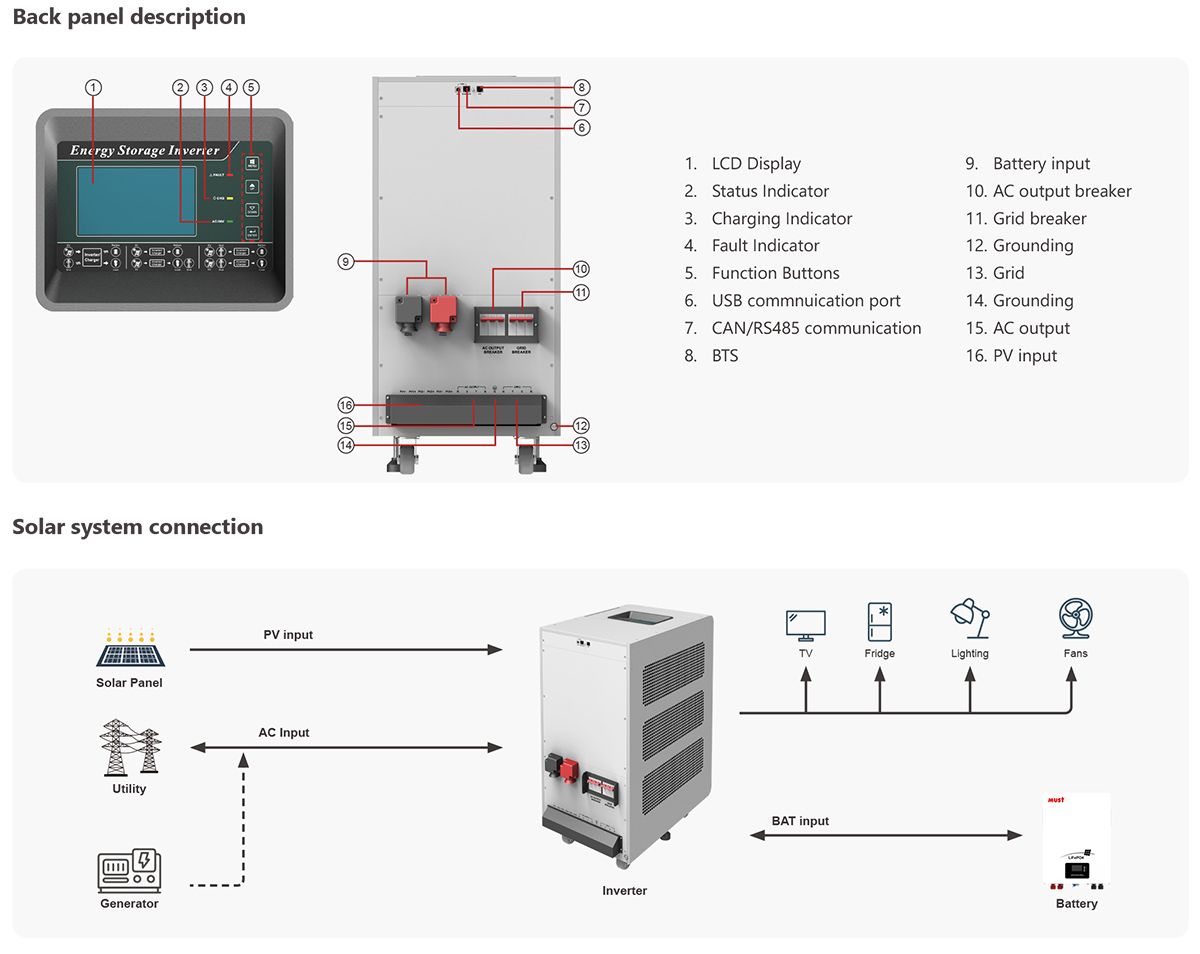

Description

Features:

• Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)

• Built-in MPPT 180A solar charge controller

• MPPT Efficiency max 98%

• Combining solar system, AC utility, and battery power source to supply continuous power

• Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive

• Support CAN, RS485 monitoring function

Specification:

MODEL	PH30-10048-T	PH30-12048-T
Nominal Battery System Voltage	48VDC
INVERTER OUTPUT
Rated output power	10000W	12000W
Output wave	Pure sine wave
Nominal output voltage	230 VAC (P-N) / 400 VAC (P-P)
Nominal output current	14.3A per phase	17.4A per phase
Nominal output frequency	50 Hz / 60 Hz
Rate of wave distortion(THD)(Linearity loads)	Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3%
Peak efficiency	≥93%
Overload capability	100%<load≤110%,30 minutes; 110%<load≤125%,1 minutes; 125%<load≤150%,30 seconds; load<150%,10 seconds; Short circuit,5 seconds
AC INPUT
AC input maximum current	26.0A per phase	34.8A per phase
Nominal frequency	50Hz / 60Hz
Acceptable input voltage range	Defaults 186Vac ~253Vac per phase;Narrow 174Vac ~272Vac per phase; Wide 95Vac ~272Vac per phase
BATTERY
Type of Battery	Lithium battery or lead-acid battery
Nominal Voltage	48VDC
Low Voltage Protection Point	Charger 34.0VDC; Inverter 40.0VDC
Absorption Voltage	50.0VDC
Refloat Voltage	54.8VDC
Float Voltage	57.2VDC
SOLAR CHARGER & AC CHARGER
PV Open Circuit Voltage	145VDC
Max Solar Charging Current	60A per channel
Max AC Charging Current	60A per phase	80A per phase
Max Charging Current	120A per phase	140A per phase
MECHANICAL SPECIFICATIONS
Mounting	Vertical
Machine Dimension, WHD(mm)	392828629
Package Dimensions (WHD)(mm)	5131031700
Net Weight (kg)	133	140
Gross Weight (kg)	128	160
OTHER
Communication terminal	RS485 / CAN bus
Operation Temperature Range	0℃ ~ +50℃
Environmental Protection Rating	IP20
Ambient humidity	0 — 90% relative humidity (non-condensing)
Altitude	≤2000m
