■ Input Voltage 12V / 24V DC optional
■ Output Voltage 230V AC optional
■ Portable power for AC products, AC outlets for connecting multiple loads
■ High efficiency converts virtually all of the battery’s power to AC
■ Mounting brackets for convenient installation
■ Overload and over temperature shut down
■ Low voltage and over voltage alarm/cut off
■ Short circuit protection

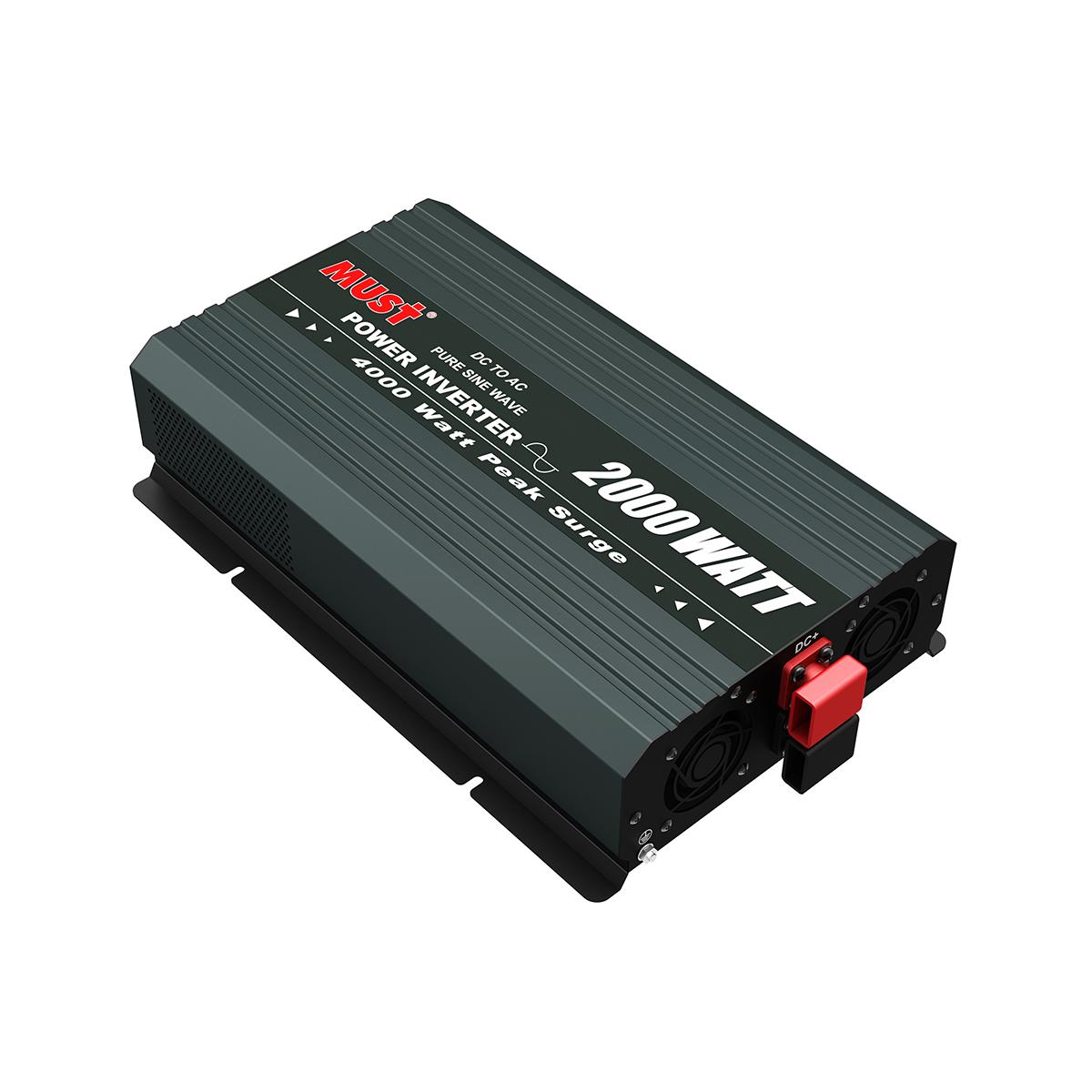

| MODEL | PI15-1512 | PI15-1524 | PI15-2012 | PI15-2024 | |
| BATTERY DC INPUT | |||||
| Input Voltage | 12VDC | 24VDC | 12VDC | 24VDC | |
| Low Voltage Protect Delay | 2 seconds | ||||
| Low Voltage Warning | (PB) | 10.5VDC | 21.0VDC | 10.5VDC | 21.0VDC |
| (LI) | 11.6VDC | 23.2VDC | 11.6VDC | 23.2VDC | |
| Low Voltage Protect | (PB) | 11.5VDC | 23.0VDC | 11.5VDC | 23.0VDC |
| (LI) | 12.0VDC | 24.0VDC | 12.0VDC | 24.0VDC | |
| Low Voltage Restoring | (PB) | 12.5VDC | 23.0VDC | 12.5VDC | 23.0VDC |
| (LI) | 12.8VDC | 25.6VDC | 12.8VDC | 25.6VDC | |
| Over Voltage Protect | (PB) | 14.7VDC | 29.4VDC | 14.7VDC | 29.4VDC |
| (LI) | 14.5VDC | 29.0VDC | 14.5VDC | 29.0VDC | |
| Over Voltage Restoring | (PB) | 15.0VDC | 30.0VDC | 15.0VDC | 30.0VDC |
| (LI) | 14.8VDC | 29.6VDC | 14.8VDC | 29.6VDC | |
| Parameters: (PB) Lead-acid Battery / (Ll) 4 series (12V), 8 series (24V) LiFePO4 Lithium Battery Pack | |||||
| INVERTER AC OUTPUT | |||||
| Default Power | 1500W | 2000W | |||
| Peak Power | 3000W | 4000W | |||
| Output AC Voltage | 230V | 230V | |||
| Output AC Frequency | 50Hz | 50Hz | |||
| Output Wave | Pure Sine Wave | ||||
| Output Wave THD | < 3% | ||||
| PROTECTION | |||||
| Battery Input Protection | Low Voltage Protection, Over Voltage Protection, Reverse Protection | ||||
| Inverter Output Protection | Output Overload, Short-Circuit, Over Temperature Protection | ||||
| DISPLAY | |||||
| LED Display | Red: Error ; Green: System OK | ||||
| LED Digital Display | Display Battery Voltage, Output Power, Output Voltage, Error Numbers | ||||
| DC OUTPUT | |||||
| USB | USB-A type (5V1A) | ||||
| EFFICIENCY | |||||
| Peak Conversion efficiency | 88% | 90% | 88% | 90% | |
| ENVIRONMENT | |||||
| Protection Degree | IP20 | ||||
| Working Environment | Indoor Fan cooling | ||||
| Environmental temperature | 0~45°C | ||||
| Ambient humidity | 20%–90%, No condensation | ||||
| Altitude | ≤3000m | ||||
| DIMENSIONS | |||||
| Machine Dimension (W*H*D) | 380.8*248*90 mm | ||||
| Package Dimension (W*H*D) | 420*300*150mm | ||||
| N.W (kg) | 4.5kg | ||||
| G.W (kg) | 19kg (4pcs) | ||||
| CERTIFICATION & STANDARDS | |||||
| CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) CE-LVD(EN 62477-1/A11) | |||||
